Model Class Reference

The incremental simulator model. More...

#include <model.h>

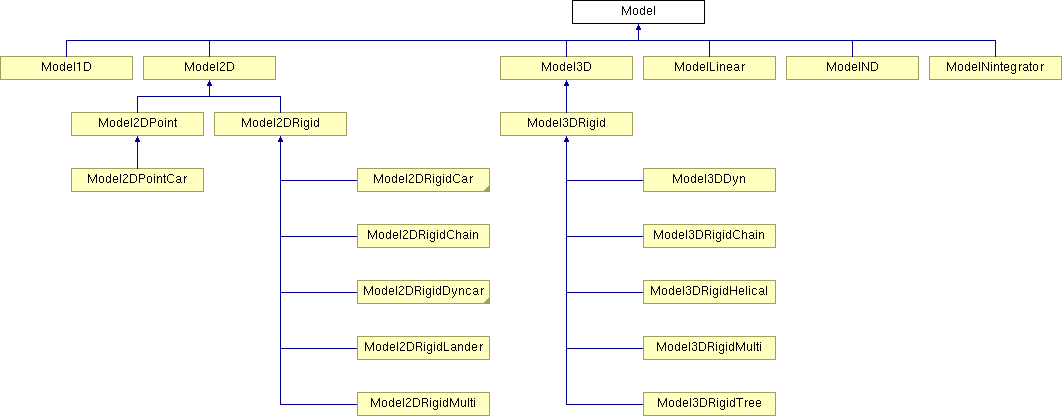

Inheritance diagram for Model:

Public Methods
	Model (string path)
	Empty constructor. More...
virtual	~Model ()
	Empty destructor. More...
virtual list< MSLVector >	GetInputs (const MSLVector &x)
	Return a list of inputs, which may depend on state. More...
virtual MSLVector	StateTransitionEquation (const MSLVector &x, const MSLVector &u)=0
	The state transition equation, or equations of motion, xdot=f(x,u). More...
virtual bool	Satisfied (const MSLVector &x)
	Test whether global state-space constraints are satisfied. More...
virtual MSLVector	Integrate (const MSLVector &x, const MSLVector &u, const double &h)=0
	Perform integration from state x, using input u, over time step h. More...
virtual MSLVector	LinearInterpolate (const MSLVector &x1, const MSLVector &x2, const double &a)
	Linearly interpolate two state while respecting topology. More...
virtual MSLVector	StateDifference (const MSLVector &x1, const MSLVector &x2)
	Compute a MSLVector based on x2-x1. In R^n, the states are simply subtracted to make the MSLVector. This method exists to make things work correctly for other state-space topologies. More...
virtual MSLVector	StateToConfiguration (const MSLVector &x)
	A method that converts a Model state in to a Geom configuration. More...
virtual double	Metric (const MSLVector &x1, const MSLVector &x2)
	A distance metric, which is Euclidean in the base class. More...
virtual void	Partialf_x (const MSLVector &x, const MSLVector &u, MSLMatrix &m)
	Partial with respect to x of the state transition equation. More...
virtual void	Partialf_u (const MSLVector &x, const MSLVector &u, MSLMatrix &m)
	Partial with respect to u of the state transition equation. More...
virtual void	L (const MSLVector &x, const MSLVector &u, double &l)
	A cost or loss function, to be used in optimization problems. More...
virtual void	PartialL_x (const MSLVector &x, const MSLVector &u, MSLMatrix &m)
	Partial of the loss with respect to x. More...
virtual void	PartialL_u (const MSLVector &x, const MSLVector &u, MSLMatrix &m)
	Partial of the loss with respect to u. More...
virtual void	Phi (const MSLVector &x, const MSLVector &u, const MSLVector &goalstate, double &phi)
	The final-state cost or loss. More...
virtual void	PartialPhi_x (const MSLVector &x, const MSLVector &u, const MSLVector &goalstate, MSLMatrix &m)
	Partial of the final-state loss with respect to x. More...
virtual void	PartialPhi_t (const MSLVector &x, const MSLVector &u, const MSLVector &goalstate, MSLMatrix &m)
	Partial of the final-state loss with respect to u. More...
virtual void	Psi (const MSLVector &x, const MSLVector &goalstate, MSLVector &psi)
	An error MSLVector that compares a goal state to a given state. More...
virtual void	PartialPsi_x (const MSLVector &x, const MSLVector &u, MSLMatrix &m)
	Partial of the error MSLVector with respect to x. More...
virtual void	PartialPsi_t (const MSLVector &x, const MSLVector &u, MSLMatrix &m)
	Partial of the error MSLVector with respect to time. More...
Public Attributes
string	FilePath
	This file path is used for all file reads. More...
MSLVector	LowerState
	MSLVector of minimum values for each state variable. More...
MSLVector	UpperState
	MSLVector of maximum values for each state variable. More...
MSLVector	LowerInput
	MSLVector of minimum values for each input variable. More...
MSLVector	UpperInput
	MSLVector of maximum values for each input variable. More...
int	StateDim
	The dimension of the state space. More...
int	InputDim
	The dimension of the input space. More...
Protected Methods
MSLVector	RungeKuttaIntegrate (const MSLVector &x, const MSLVector &u, const double &h)
	Integrate xdot using 4th-order Runge-Kutta. More...
MSLVector	EulerIntegrate (const MSLVector &x, const MSLVector &u, const double &h)
	Integrate xdot using Euler integration. More...
Protected Attributes
double	ModelDeltaT
	The time interval to use for numerical integration (affects accuracy). More...
list< MSLVector >	Inputs
	The complete set of inputs. More...

Detailed Description

The incremental simulator model.

The Model classes contain incremental simulators that model the kinematics and dynamics of a variety of mechanical systems. The methods allow planning algorithms to compute the future system state, given the current state, an interval of time, and a control input applied over that interval. (The planning algorithms select the appropriate inputs using this information.) Using object-oriented class derivations, a wide variety of simulators can be included.

Constructor & Destructor Documentation

Model::Model ( string path )

Empty constructor.

virtual Model::~Model ( ) [inline, virtual]

Empty destructor.

Member Function Documentation

MSLVector Model::EulerIntegrate ( const MSLVector & x,

const MSLVector & u,

const double & h

) [protected]

Integrate xdot using Euler integration.

list< MSLVector > Model::GetInputs ( const MSLVector & x ) [virtual]

Return a list of inputs, which may depend on state.

virtual MSLVector Model::Integrate ( const MSLVector & x,

const MSLVector & u,

const double & h

) [pure virtual]

Perform integration from state x, using input u, over time step h.

Implemented in Model3DRigidHelical.

virtual void Model::L ( const MSLVector & x,

const MSLVector & u,

double & l

) [inline, virtual]

A cost or loss function, to be used in optimization problems.

MSLVector Model::LinearInterpolate ( const MSLVector & x1,

const MSLVector & x2,

const double & a

) [virtual]

Linearly interpolate two state while respecting topology.
If a=0, then x1 is returned; if a=1, then x2 is returned. All intermediate values of $a \in [0,1]$ yield intermediate states. This method is defined by Model.
Reimplemented in Model2DRigid.

double Model::Metric ( const MSLVector & x1,

const MSLVector & x2

) [virtual]

A distance metric, which is Euclidean in the base class.

Reimplemented in Model2DPoint.

virtual void Model::Partialf_u ( const MSLVector & x,

const MSLVector & u,

MSLMatrix & m

) [inline, virtual]

Partial with respect to u of the state transition equation.

virtual void Model::Partialf_x ( const MSLVector & x,

const MSLVector & u,

MSLMatrix & m

) [inline, virtual]

Partial with respect to x of the state transition equation.

virtual void Model::PartialL_u ( const MSLVector & x,

const MSLVector & u,

MSLMatrix & m

) [inline, virtual]

Partial of the loss with respect to u.

virtual void Model::PartialL_x ( const MSLVector & x,

const MSLVector & u,

MSLMatrix & m

) [inline, virtual]

Partial of the loss with respect to x.

virtual void Model::PartialPhi_t ( const MSLVector & x,

const MSLVector & u,

const MSLVector & goalstate,

MSLMatrix & m

) [inline, virtual]

Partial of the final-state loss with respect to u.

virtual void Model::PartialPhi_x ( const MSLVector & x,

const MSLVector & u,

const MSLVector & goalstate,

MSLMatrix & m

) [inline, virtual]

Partial of the final-state loss with respect to x.

virtual void Model::PartialPsi_t ( const MSLVector & x,

const MSLVector & u,

MSLMatrix & m

) [inline, virtual]

Partial of the error MSLVector with respect to time.

virtual void Model::PartialPsi_x ( const MSLVector & x,

const MSLVector & u,

MSLMatrix & m

) [inline, virtual]

Partial of the error MSLVector with respect to x.

virtual void Model::Phi ( const MSLVector & x,

const MSLVector & u,

const MSLVector & goalstate,

double & phi

) [inline, virtual]

The final-state cost or loss.

virtual void Model::Psi ( const MSLVector & x,

const MSLVector & goalstate,

MSLVector & psi

) [inline, virtual]

An error MSLVector that compares a goal state to a given state.

MSLVector Model::RungeKuttaIntegrate ( const MSLVector & x,

const MSLVector & u,

const double & h

) [protected]

Integrate xdot using 4th-order Runge-Kutta.

bool Model::Satisfied ( const MSLVector & x ) [virtual]

Test whether global state-space constraints are satisfied.

Reimplemented in Model2DRigidCarSmooth.

MSLVector Model::StateDifference ( const MSLVector & x1,

const MSLVector & x2

) [virtual]

Compute a MSLVector based on x2-x1. In R^n, the states are simply subtracted to make the MSLVector. This method exists to make things work correctly for other state-space topologies.

Reimplemented in Model2DRigid.

MSLVector Model::StateToConfiguration ( const MSLVector & x ) [virtual]

A method that converts a Model state in to a Geom configuration.

Reimplemented in Model2D.

virtual MSLVector Model::StateTransitionEquation ( const MSLVector & x,

const MSLVector & u

) [pure virtual]

The state transition equation, or equations of motion, xdot=f(x,u).

Implemented in Model3DRigidHelical.

Member Data Documentation

string Model::FilePath

This file path is used for all file reads.

int Model::InputDim

The dimension of the input space.

list<MSLVector> Model::Inputs [protected]

The complete set of inputs.

MSLVector Model::LowerInput

MSLVector of minimum values for each input variable.

MSLVector Model::LowerState

MSLVector of minimum values for each state variable.

double Model::ModelDeltaT [protected]

The time interval to use for numerical integration (affects accuracy).

int Model::StateDim

The dimension of the state space.

MSLVector Model::UpperInput

MSLVector of maximum values for each input variable.

MSLVector Model::UpperState

MSLVector of maximum values for each state variable.

The documentation for this class was generated from the following files:
