Attaching bodies

When bodies are attached in a kinematic chain, degrees of freedom are removed. Figure 3.9 shows two different ways in which a pair of 2D links can be attached. The place at which the links are attached is called a joint. For a revolute joint, one link is capable only of rotation with respect to the other. For a prismatic joint is shown, one link slides along the other. Each type of joint removes two degrees of freedom from the pair of bodies. For example, consider a revolute joint that connects $ {\cal A}_1$ to $ {\cal A}_2$. Assume that the point $ (0,0)$ in the body frame of $ {\cal A}_2$ is permanently fixed to a point $ (x_a,y_a)$ in the body frame of $ {\cal A}_1$. This implies that the translation of $ {\cal A}_2$ is completely determined once $ x_a$ and $ y_a$ are given. Note that $ x_a$ and $ y_a$ depend on $ x_1$, $ y_1$, and $ \theta_1$. This implies that $ {\cal A}_1$ and $ {\cal A}_2$ have a total of four degrees of freedom when attached. The independent parameters are $ x_1$, $ y_1$, $ \theta_1$, and $ \theta_2$. The task in the remainder of this section is to determine exactly how the models of $ {\cal A}_1$, $ {\cal A}_2$, $ \ldots $, $ {\cal A}_m$ are transformed when they are attached in a chain, and to give the expressions in terms of the independent parameters.

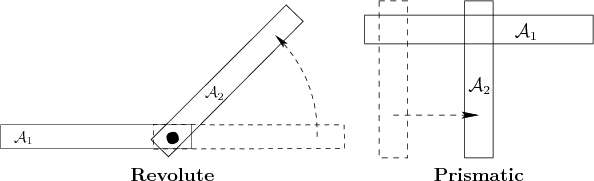

Figure 3.9: Two types of 2D joints: a revolute joint allows one link to rotate with respect to the other, and a prismatic joint allows one link to translate with respect to the other.
\begin{figure}\begin{center}
\begin{tabular}{cc}
\psfig{file=figs/revolute2d.eps...
...in} \\
{\bf Revolute} & {\bf Prismatic}
\end{tabular}\end{center}
\end{figure}

Consider the case of a kinematic chain in which each pair of links is attached by a revolute joint. The first task is to specify the geometric model for each link, $ {\cal A}_i$. Recall that for a single rigid body, the origin of the body frame determines the axis of rotation. When defining the model for a link in a kinematic chain, excessive complications can be avoided by carefully placing the body frame. Since rotation occurs about a revolute joint, a natural choice for the origin is the joint between $ {\cal A}_i$ and $ {\cal A}_{i-1}$ for each $ i
> 1$. For convenience that will soon become evident, the $ x_i$-axis for the body frame of $ {\cal A}_i$ is defined as the line through the two joints that lie in $ {\cal A}_i$, as shown in Figure 3.10. For the last link, $ {\cal A}_m$, the $ x_m$-axis can be placed arbitrarily, assuming that the origin is placed at the joint that connects $ {\cal A}_m$ to $ {\cal A}_{m-1}$. The body frame for the first link, $ {\cal A}_1$, can be placed using the same considerations as for a single rigid body.

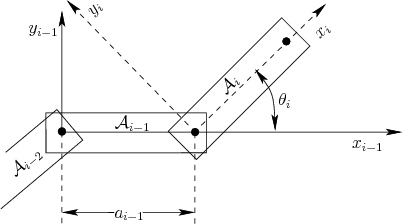

Figure 3.10: The body frame of each $ {\cal A}_i$, for $ 1 < i < m$, is based on the joints that connect $ {\cal A}_i$ to $ {\cal A}_{i-1}$ and $ {\cal A}_{i+1}$.
\begin{figure}\centerline{\psfig{file=figs/2dlinks0.eps,width=3.5in}}\end{figure}
