A debugging tip

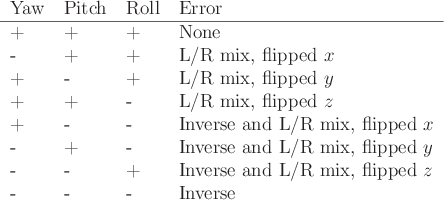

Figure 9.7: A table to help debug common viewpoint transform errors. Each $ +$ means that the virtual world appears to move the correct way when performing the yaw, pitch, or roll. Each $ -$ means it moves in the opposite way. The first case is correct. All others are bugs. ``L/R mix'' means that left and right-handed coordinate systems are getting mixed; the axis that was flipped is indicated.
\begin{figure}\begin{center}
\begin{tabular}{llll}
Yaw & Pitch & Roll & Error \\...
... flipped $z$ \\
- & - & - & Inverse \\
\end{tabular}
\end{center}\end{figure}

Programmers often make mistakes when connecting the tracked orientation to the viewpoint. Figure 9.7 shows a table of the common mistakes. To determine whether the transform has been correctly applied, one should put on the headset and try rotating about the three canonical axes: A pure yaw, a pure pitch, and a pure roll. Let $ +$ denote that the world is moving correctly with respect to a head rotation. Let $ -$ denote that it seems to move in the opposite direction. Figure 9.7 shows a table of the eight possible outcomes and the most likely cause of each problem.
